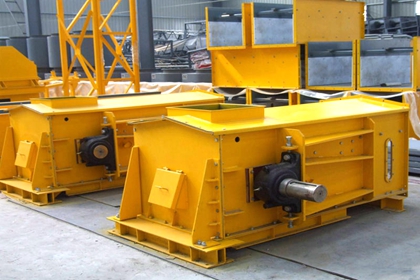

Bucket Elevator

Bucket elevator is designed for bulk material vertical conveying professional product with heavy duty capacity.  It has been widely applied for grain, oils, feed, biomass, fertilizer, port terminal industry, etc. depend on compact structure, low break rate, non-backflow, dedust control.

Processed Materials:Wheat, corn, soybean, fertilizer, etc

Production Capacity:50-1,200T/H

FEATURES

1. Different kind of conveying material will be matched with best pulley diameter, linear speed and bucket parameter.

2.  Head pulley use advanced rubber coating to improve friction coefficient;

3. Equipped with explosion-proof to prevent dust explosion;

4. Equipped with backstop device to prevent block due to hard shutdown.

5. Large capacity model equips with single point supported drive device, it perfectly solves the problem of coaxiality steel platform vibration.



SPECIFICATIONS

Model

Capacity

(m3/h)

Belt Width

mm

Linear Speed

m/s

TDTG30*13

1220

150

≤1.8

TDTG40*18

2740

200

≤2

TDTG40*23

4055

250

≤2

TDTG50*28

68110

300

≤2.5

TDTG60*33

125165

350

≤2.5

TDTG60*38

205275

400

≤2.5

TDTG80*46

275345

500

≤3

TDTG80*56

275485

600

≤3

TDTG80*46*2

550830

900

≤3

TDTG80*56*2

6901100

1200

≤3

TDTG120*56*3

11101800

1800

≤3.5

TDTG120*50*4

13802080

2150

≤3.5
